Filament-wound GRP pipes
For pressure pipelines and hydraulic structures, from DN 200 to DN 4000.
A process suited to pressure pipelines

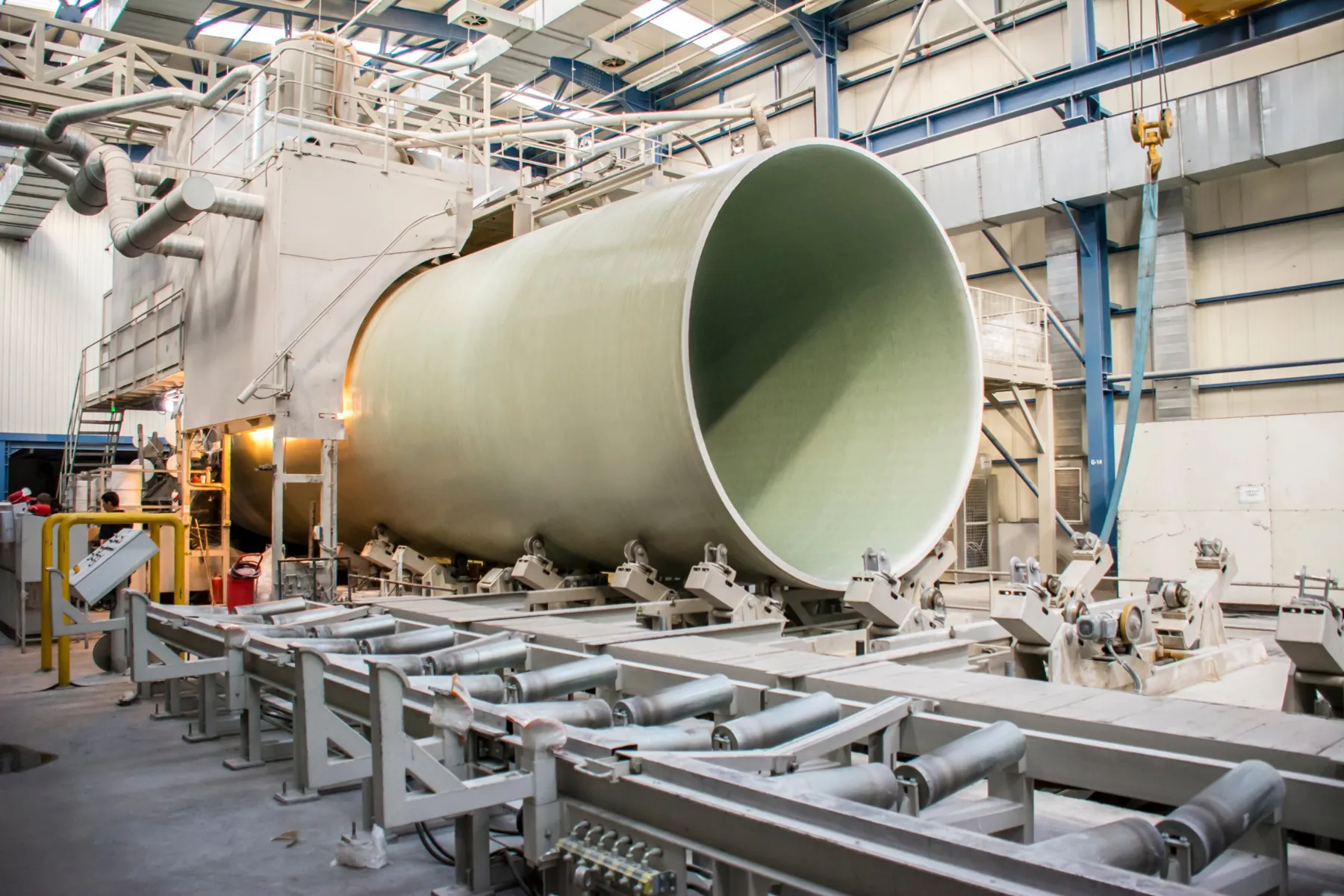

In the filament-winding process, resin-impregnated glass fibres are laid on a rotating mandrel at precise angles (circumferential, helical or longitudinal). The result is a lightweight pipe that resists pressure and corrosion, with adjustable ring stiffness.
- Suited to pressure pipelines as well as gravity networks
- Range from DN 200 to DN 4000, ring stiffness adjustable to the installation
- Coupling joint "Full-Face" with elastomer seal, with repair and transition couplings
- Standards EN 14364 and ISO 23856; factories certified ISO 9001, 14001 and 45001
- Diameters, pressures and stiffness classes defined project by project with Marc
Technical characteristics
An extensive range that is configured to suit the project.
Technical overview
| Characteristic | Information |
|---|---|
| Process | Filament winding of resin-impregnated glass fibres on a mandrel |
| Wall | Polyester resin matrix, glass-fibre reinforcement and inert mineral filler (quartz sand); inner barrier layer, structural core, outer protective layer |
| Reference standards | EN 14364 · NF EN ISO 23856 |
| Fields of use | Raw water, water supply, irrigation, hydropower, sewage pumping mains, sewerage, industry |
| Diameters | DN 200 à DN 4000 |
| Pressure and stiffness | Adjustable to the project (working pressure, depth, soil, loads) |
| Jointing | Full-Face couplings with elastomer seal, repair or transition couplings, special pieces |
We send you the detailed datasheets for your case.
For more information, download the brochure.
Diameters of filament-wound GRP pipesClick to show the table (DN 200 to 4000)
| DN (mm) | Outside diameter (mm) |
|---|---|
| 200 | 212 |
| 300 | 324 |
| 350 | 376 |
| 400 | 427 |
| 450 | 476 |
| 500 | 530 |
| 600 | 633 |
| 700 | 718 |
| 800 | 820 |
| 900 | 924 |
| 1000 | 1026 |
| 1100 | 1125 |
| 1200 | 1229 |
| 1300 | 1331 |
| 1400 | 1433 |
| 1500 | 1536 |
| 1600 | 1638 |
| 1700 | 1739 |
| 1800 | 1841 |
| 1900 | 1944 |
| 2000 | 2046 |
| 2100 | 2148 |
| 2200 | 2250 |
| 2300 | 2354 |
| 2400 | 2454 |
| 2500 | 2553 |
| 2600 | 2657 |
| 2700 | 2758 |
| 2800 | 2858 |
| 2900 | 2962 |
| 3000 | 3065 |
| 3100 | 3166 |
| 3200 | 3269 |
| 3300 | 3370 |
| 3400 | 3473 |
| 3500 | 3574 |
| 3600 | 3676 |
| 3700 | 3778 |
| 3800 | 3880 |
| 3900 | 3982 |
| 4000 | 4085 |
Indicative manufacturer data; it does not replace a design calculation. We check each value with you before ordering.
For more information, download the brochure.
The benefits at a glance
Corrosion resistance
No internal or external corrosion: no cathodic protection, no coating to maintain.
Pressure resistance
Designed for internal pressure and water hammer: water supply, pumping mains, hydroelectric plants.
Hydraulic efficiency
Smooth wall, low hydraulic head losses: optimal flow.
Lightweight
About 1/4 of the weight of steel and 1/10 of concrete: handling without heavy equipment, fast installation.
Low footprint
Pipes of different diameters can be nested for transport, which reduces transport costs and carbon footprint.
Made-to-measure design
Stiffness, pressure and thicknesses tailored to each structure.
Applications
Click an application to see the related solutions.
Accessories and associated parts
A high-performance pipeline is nothing without the right accessories: we help you put together a coherent system.
Couplings and fittings
Watertight joints with elastomer gaskets, suited to the diameter and pressure.
Special parts
Bends, tees, reducers, branches and flanges manufactured to your installation drawing.
Installation advice
Choice of backfill, bedding, anchors and thrust blocks: we support you all the way to the site.
Your questions about filament-wound GRP
When should I prefer filament winding to centrifugal casting?
Centrifugally cast GRP is recognised for its performance in gravity networks and suits medium pressure; for high pressures, filament winding remains better suited. We compare both with you.
Is GRP suitable for hydropower?
Yes. GRP is used for transmission and pumping mains in hydropower plants: its smooth wall limits head loss and its design withstands the working pressure.
What pipe lengths are available?
They depend on the diameter and the project. We confirm the available lengths and transport constraints when we make the offer.
